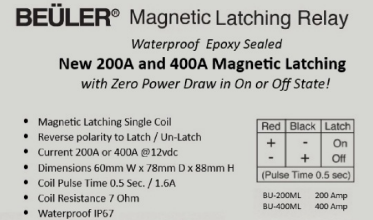

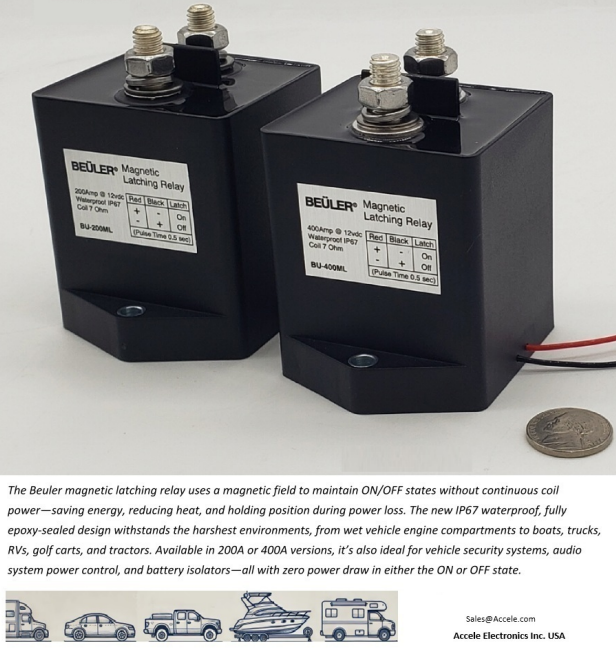

MAGNETIC LATCHING RELAY

Beuler Waterproof Epoxy Sealed Magnetic Latching Relay with Zero Power Draw in ON or OFF State!

• Magnetic latching single coil
• Reverse polarity to latch/un-latch
• Current 200A or 400A @12vdc
• Dimensions 60mm W x 78mm D x 88mm H
• Coil pulse time 0.5 sec/1.6A
• Coil resistance 7 Ohm
• Waterproof IP67
• Manufacturer: Beuler

SKU:BU-200ML
